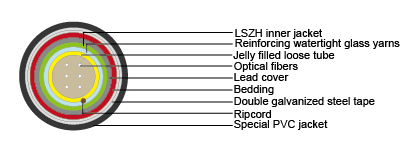

Double Galvanized Steel Tape Armored Optical Fiber Cable with Lead Cover
Applications
Double Galvanized Steel Tape Armored Optical Fiber Cable with Lead Cover cables are suitable for
underground use in all refineries. The special design can resists aliphatic and aromatic hydrocarbon and U.V.
Standards
IEC 794-1-E1; IEC 794-1-E3; IEC 794-1-E4; IEC 794-1-F1; IEC 60332-3-22 Cat.A
Properties
Operating temperature: -20~60°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
| No. of Optical Fiber | Fiber Optic Type | No. of Tube | Diameter over Inner Sheath (mm) | Diameter over Lead Sheath (mm) | Diameter over Armor (mm) | Min. O.D. (mm) | Max. O.D. (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| 4 | 50/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 4 | 62.5/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 6 | 50/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 6 | 62.5/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 8 | 50/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 8 | 62.5/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 8 | 9/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 12 | 50/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 12 | 62.5/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 12 | 9/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 16 | 62.5/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 24 | 50/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
| 24 | 62.5/125 | 1 | 6.6 | 8.4 | 10.04 | 12.6 | 14 | 448 |
